The SN-cable is an electrically heated cable designed to prevent snow and ice accumulation around the home or facility. such as on driveway,walkways and stairs and so on.

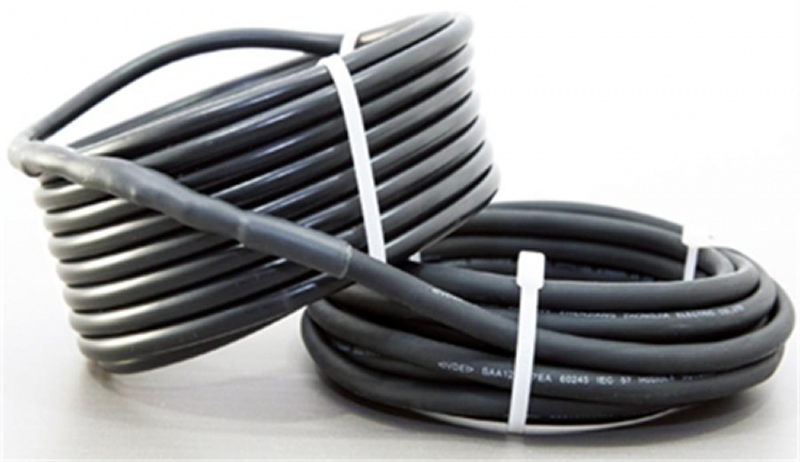

Product Name:Snow Melting Heating Cable SN-cable
The SN-cable is an electrically heated mat designed to prevent snow and ice accumulation around the home or facility. such as on driveway,walkways and stairs and so on.
In winter, when the accumulated snow on walkways, parking garage, loading ramps, stairways and other areas, it will bring problem to people’s life. Electric snow melting systems can keep walkways, parking garage, loading ramps, stairways and other area.
Cable construction: Twin conductor
Rated voltage : 230V 400V
Power output : 30W/m
Heating element length: 10m to 120m
Bending radius: 38mm
Outside diameter : 6.5mm
Protective jacket: PVC
Shield: Al foil+Cu wire
Max.rated Temp : 105℃
Min.installation Temp: 5℃
Cold lead : 6m length
Single point connection
Robust ,efficient,and safe
Easy and flexible installation
15-year limited warranty against manufacturing defects
Twin conductors cable
Thin, only 6.5mm
Emits zero EMF(electromagnetic fields)
Install the SN-cable snow melting system provides a permanent solution to the problems caused by cold weather when snow and ice accumulation. It can be used both outdoor and indoor environment.
Ideal for driveways, parking lots,sidewalks, stairs , ramps,bridges and many other applications.
For used under concrete ,asphalt,paver or stone and ceramic or stone tile.
Roof & gutter de-icing.
Subfloor energy storage heating.
Packing & Shipping
Installation Manual Download
